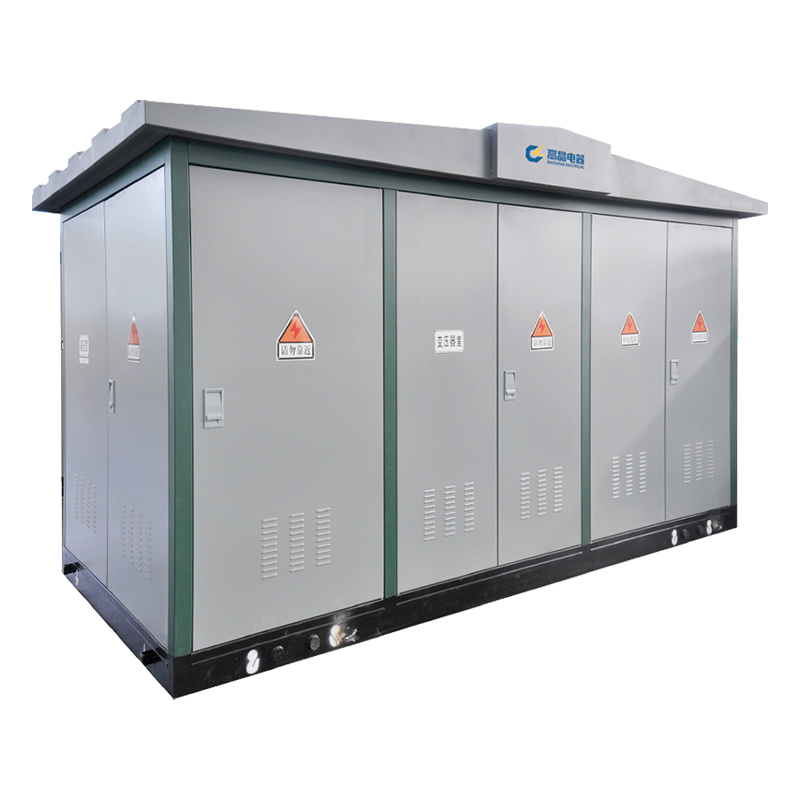

Box-Type Substations
Also known as a prefabricated substation, the box-type substation is a compact indoor/outdoor power distribution unit that integrates high-voltage switchgear, distribution transformers, and low-voltage distribution devices according to specific wiring schemes.
It organically combines functions such as transformer step-down and low-voltage power distribution within a fully enclosed, movable structure that is moisture-proof, rust-proof, dust-proof, rodent-proof, fire-resistant, theft-proof, and heat-insulating.
Particularly suitable for urban network construction and renovation, it represents an innovative alternative to traditional civil-construction substations.
Share:
General Introduction
①Structural Features
Also known as a prefabricated substation, the box-type substation is a compact indoor/outdoor power distribution unit that integrates high-voltage switchgear, distribution transformers, and low-voltage distribution devices according to specific wiring schemes. It organically combines functions such as transformer step-down and low-voltage power distribution within a fully enclosed, movable structure that is moisture-proof, rust-proof, dust-proof, rodent-proof, fire-resistant, theft-proof, and heat-insulating. Particularly suitable for urban network construction and renovation, it represents an innovative alternative to traditional civil-construction substations.
②Technical Parameters
System rated frequency: 50Hz
High-voltage side rated voltage: 10kV
Maximum equipment voltage: 12kV
Low-voltage side rated voltage: 0.4kV
Neutral point grounding method: typically non-effectively grounded
Common transformer capacities: 400kVA, 500kVA, 630kVA, etc.
Enclosure protection grade: not less than IP33D
Typical Applications
Widely used in residential communities, commercial centers, airports, factories, mines, enterprises, hospitals, schools, and other locations. It replaces traditional civil-construction power distribution rooms and substations, emerging as a new type of integrated power transformation and distribution equipment.
Advantages
The enclosure is constructed with highly corrosion-resistant materials, guaranteeing 20 years of rust-free durability.
All equipment undergoes multiple installations and debugging processes in the factory to ensure optimal performance. As a result, on-site installation only involves enclosure positioning and cable connection, leading to a significantly shortened construction period.
Each enclosure forms an independent system, contributing to a compact and space-efficient structure.
The enclosure has a high protection class, providing effective resistance against moisture, rust, dust, and fire hazards.
It can be configured as a fully box-type or partially box-type system, making it versatile for diverse application scenarios.
Production Process
① Design stage:
Based on user requirements, comprehensively considering the electrical system, internal layout, heat dissipation needs and structural compactness, ensure the functionality is reasonable.
② Manufacturing Stage
High-quality steel and insulating materials are used to ensure the enclosure is moisture-proof, rust-proof, dust-proof, rodent-proof, and fire-resistant. The enclosure frame is welded from channel steel, angle steel, and other materials.
③ Assembly Stage
Construction is strictly carried out according to drawings to ensure precise alignment of all components. The box-type substation consists of an enclosure, high-voltage compartment, transformer compartment, low-voltage compartment, etc.
④ Testing Stage
Rigorous tests are conducted in accordance with factory test procedures and relevant standards to ensure each test item and product meets quality requirements.
Customization Range
① Capacity and Configuration
Standard capacities range from 30kVA to 2000kVA. For higher power requirements, customized capacities up to 3150kVA or 4000kVA are available.
② Structural Layout
Internal structure and dimensions can be adjusted based on the user's on-site conditions to ensure seamless installation upon delivery.
Require More Customized Solutions?
We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
